Please send RFQ , we will respond immediately.

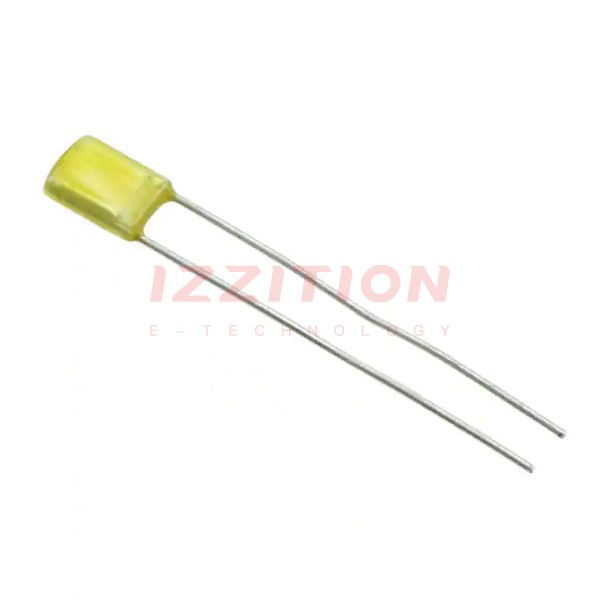

| Part Number | QYX1H222KTP1FD | QYX1H223KTP1FD | QYX1H222JTP1FD |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 2200 pF | 0.022 µF | 2200 pF |
| Tolerance | ±10% | ±10% | ±5% |
| Voltage Rating - AC | - | - | - |
| Voltage Rating - DC | 50V | 50V | 50V |
| Dielectric Material | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.217" L x 0.118" W (5.50mm x 3.00mm) | 0.256" L x 0.138" W (6.50mm x 3.50mm) | 0.217" L x 0.118" W (5.50mm x 3.00mm) |
| Height - Seated (Max) | 0.335" (8.50mm) | 0.650" (16.50mm) | 0.571" (14.50mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
