Please send RFQ , we will respond immediately.

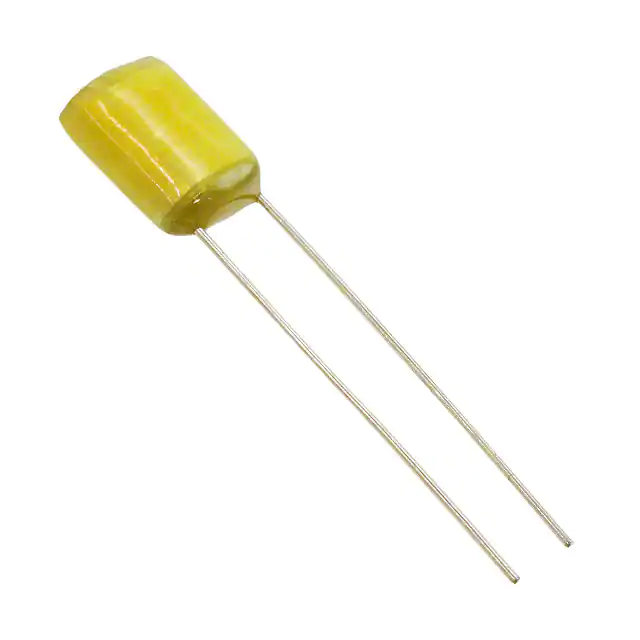

| Part Number | QYX1H124JTP | QYX1H224JTP | QYX1H184JTP | QYX1H154JTP | QYX1H124KTP | QYX1H104JTP | QYX1H122JTP | QYX1H123JTP |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Capacitance | 0.12 µF | 0.22 µF | 0.18 µF | 0.15 µF | 0.12 µF | 0.1 µF | 1200 pF | 0.012 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 50V | 50V | 50V | 50V | 50V | 50V | 50V | 50V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.354" L x 0.217" W (9.00mm x 5.50mm) | 0.433" L x 0.256" W (11.00mm x 6.50mm) | 0.413" L x 0.236" W (10.50mm x 6.00mm) | 0.394" L x 0.256" W (10.00mm x 6.50mm) | 0.354" L x 0.217" W (9.00mm x 5.50mm) | 0.354" L x 0.217" W (9.00mm x 5.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) | 0.236" L x 0.138" W (6.00mm x 3.50mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.532" (13.50mm) | 0.532" (13.50mm) | 0.532" (13.50mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.335" (8.50mm) | 0.335" (8.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
