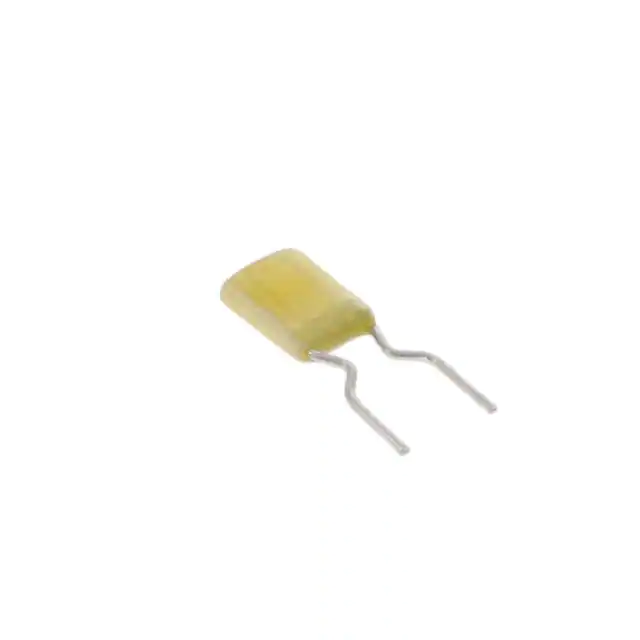

| Part Number | QYX1H103JTP1FD | QYX1H103KTP1FD | QYX1H153JTP1FD | QYX1H102JTP1FD |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 10000 pF | 10000 pF | 0.015 µF | 1000 pF |
| Tolerance | ±5% | ±10% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - |
| Voltage Rating - DC | 50V | 50V | 50V | 50V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.236" L x 0.138" W (6.00mm x 3.50mm) | 0.236" L x 0.138" W (6.00mm x 3.50mm) | 0.236" L x 0.138" W (6.00mm x 3.50mm) | 0.197" L x 0.098" W (5.00mm x 2.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) | 0.571" (14.50mm) | 0.630" (16.00mm) | 0.571" (14.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
