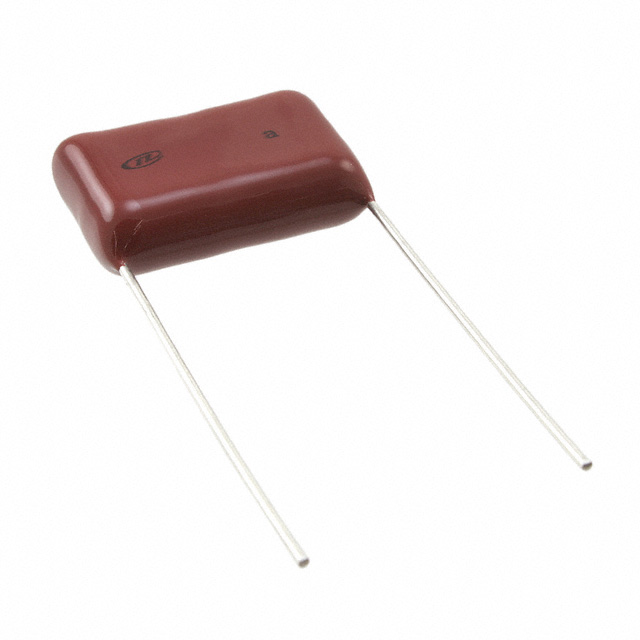

| Part Number | QXT2J333KRPT | QXP2J333KRPT | QXT2G333KRPT |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 0.033 µF | 0.033 µF | 0.033 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 300V | 200V | 200V |
| Voltage Rating - DC | 630V | 630V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.945" L x 0.303" W (24.00mm x 7.70mm) | 0.630" L x 0.295" W (16.00mm x 7.50mm) | 0.748" L x 0.323" W (19.00mm x 8.20mm) |
| Height - Seated (Max) | 0.752" (19.10mm) | 0.500" (12.70mm) | 0.677" (17.20mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.787" (20.00mm) | 0.492" (12.50mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - |
| Features | - | - | - |
