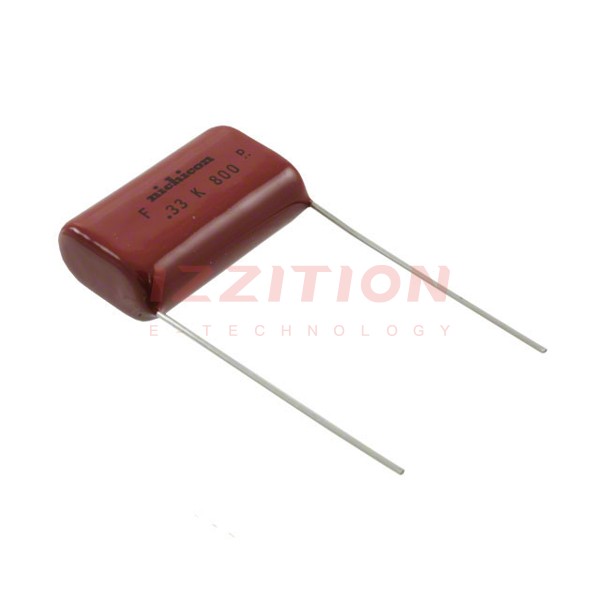

| Part Number | QXP2K334KRPT | QXP2E334KRPT | QXP2G334KRPT | QXP2J334KRPT | QXP2K333KRPT |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.33 µF | 0.33 µF | 0.33 µF | 0.33 µF | 0.033 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 250V | 125V | 160V | 200V | 250V |
| Voltage Rating - DC | 800V | 250V | 400V | 630V | 800V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.240" L x 0.476" W (31.50mm x 12.10mm) | 0.827" L x 0.335" W (21.00mm x 8.50mm) | 0.827" L x 0.437" W (21.00mm x 11.10mm) | 1.043" L x 0.421" W (26.50mm x 10.70mm) | 0.827" L x 0.280" W (21.00mm x 7.10mm) |
| Height - Seated (Max) | 0.866" (22.00mm) | 0.555" (14.10mm) | 0.740" (18.80mm) | 0.811" (20.60mm) | 0.524" (13.30mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.886" (22.50mm) | 0.689" (17.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
