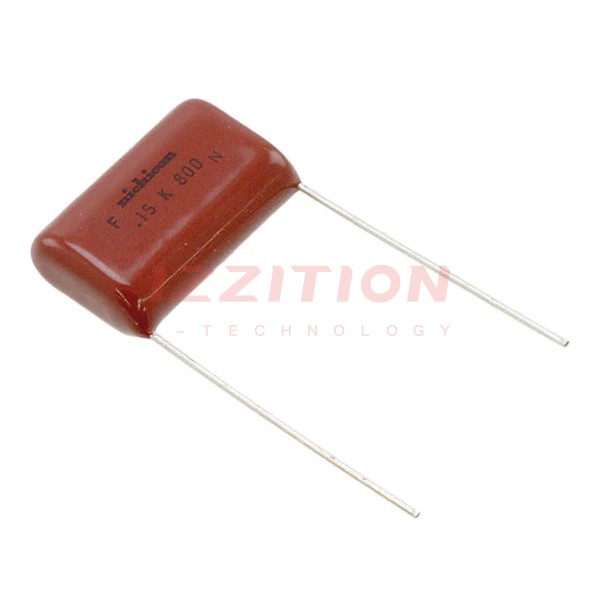

| Part Number | QXP2K154KRPT | QXP2E154KRPT | QXP2G154KRPT | QXP2J154KRPT | QXP2K104KRPT | QXP2K153KRPT |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.15 µF | 0.15 µF | 0.15 µF | 0.15 µF | 0.1 µF | 0.015 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 250V | 125V | 160V | 200V | 250V | 250V |
| Voltage Rating - DC | 800V | 250V | 400V | 630V | 800V | 800V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.043" L x 0.378" W (26.50mm x 9.60mm) | 0.630" L x 0.303" W (16.00mm x 7.70mm) | 0.827" L x 0.339" W (21.00mm x 8.60mm) | 0.827" L x 0.378" W (21.00mm x 9.60mm) | 0.827" L x 0.378" W (21.00mm x 9.60mm) | 0.630" L x 0.276" W (16.00mm x 7.00mm) |
| Height - Seated (Max) | 0.768" (19.50mm) | 0.524" (13.30mm) | 0.583" (14.80mm) | 0.685" (17.40mm) | 0.748" (19.00mm) | 0.496" (12.60mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.492" (12.50mm) | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.492" (12.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
