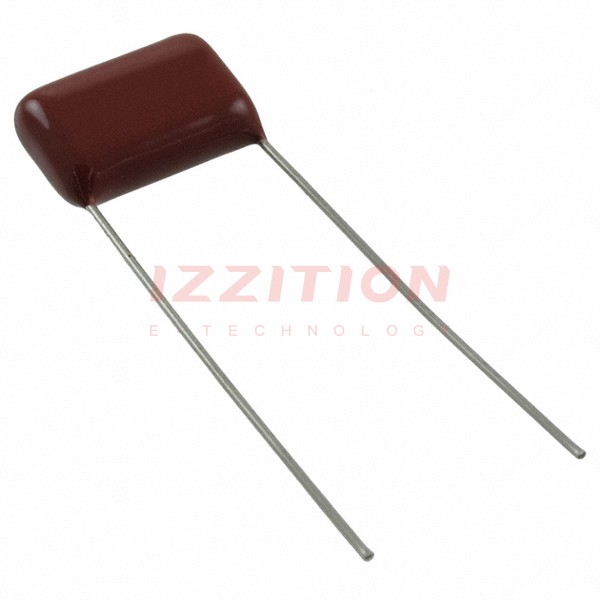

| Part Number | QXP2K153KRPT | QXP2K154KRPT | QXP2J153KRPT | QXP2K103KRPT |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.015 µF | 0.15 µF | 0.015 µF | 10000 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 250V | 250V | 200V | 250V |
| Voltage Rating - DC | 800V | 800V | 630V | 800V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.630" L x 0.276" W (16.00mm x 7.00mm) | 1.043" L x 0.378" W (26.50mm x 9.60mm) | 0.630" L x 0.240" W (16.00mm x 6.10mm) | 0.630" L x 0.244" W (16.00mm x 6.20mm) |
| Height - Seated (Max) | 0.496" (12.60mm) | 0.768" (19.50mm) | 0.457" (11.60mm) | 0.465" (11.80mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.886" (22.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
