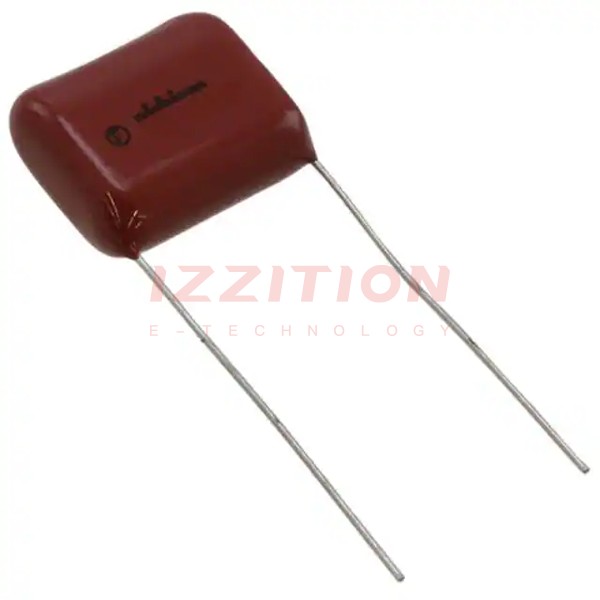

| Part Number | QXP2K104KRPT | QXP2K154KRPT | QXP2E104KRPT | QXP2G104KRPT | QXP2J104KRPT | QXP2K103KRPT |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.1 µF | 0.15 µF | 0.1 µF | 0.1 µF | 0.1 µF | 10000 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 250V | 250V | 125V | 160V | 200V | 250V |
| Voltage Rating - DC | 800V | 800V | 250V | 400V | 630V | 800V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.827" L x 0.378" W (21.00mm x 9.60mm) | 1.043" L x 0.378" W (26.50mm x 9.60mm) | 0.630" L x 0.268" W (16.00mm x 6.80mm) | 0.827" L x 0.299" W (21.00mm x 7.60mm) | 0.827" L x 0.323" W (21.00mm x 8.20mm) | 0.630" L x 0.244" W (16.00mm x 6.20mm) |
| Height - Seated (Max) | 0.748" (19.00mm) | 0.768" (19.50mm) | 0.488" (12.40mm) | 0.520" (13.20mm) | 0.626" (15.90mm) | 0.465" (11.80mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.689" (17.50mm) | 0.886" (22.50mm) | 0.492" (12.50mm) | 0.689" (17.50mm) | 0.689" (17.50mm) | 0.492" (12.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
