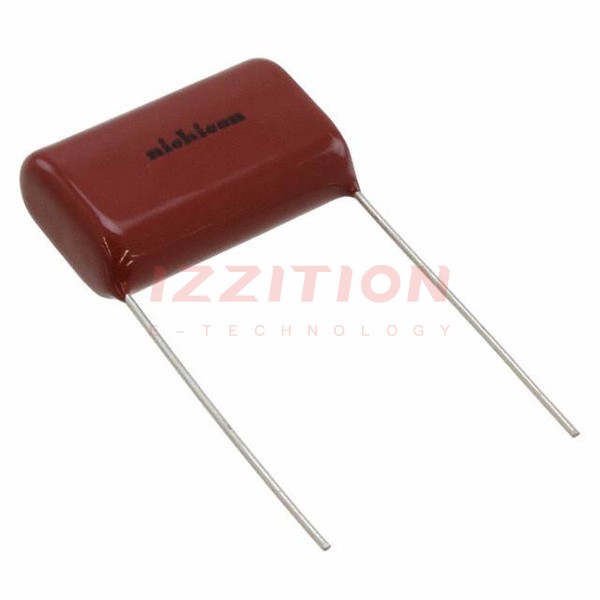

| Part Number | QXP2J474KRPT | QXP2K474KRPT | QXP2E474KRPT | QXP2G474KRPT | QXP2J473KRPT |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.47 µF | 0.47 µF | 0.47 µF | 0.47 µF | 0.047 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 200V | 250V | 125V | 160V | 200V |
| Voltage Rating - DC | 630V | 800V | 250V | 400V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.240" L x 0.437" W (31.50mm x 11.10mm) | 1.240" L x 0.539" W (31.50mm x 13.70mm) | 0.827" L x 0.370" W (21.00mm x 9.40mm) | 1.043" L x 0.409" W (26.50mm x 10.40mm) | 0.827" L x 0.264" W (21.00mm x 6.70mm) |
| Height - Seated (Max) | 0.823" (20.90mm) | 0.992" (25.20mm) | 0.614" (15.60mm) | 0.795" (20.20mm) | 0.508" (12.90mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 0.689" (17.50mm) | 0.886" (22.50mm) | 0.689" (17.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
