Please send RFQ , we will respond immediately.

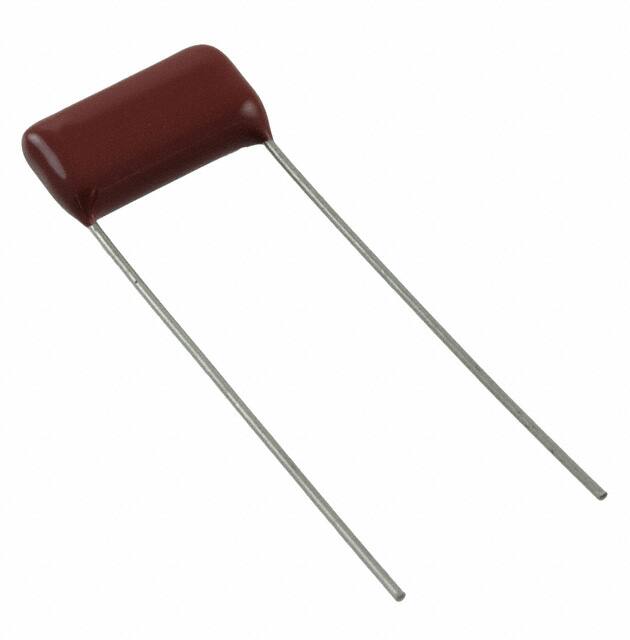

| Part Number | QXP2J153KRPT | QXP2K153KRPT | QXT2J153KRPT | QXP2J154KRPT | QXP2J103KRPT |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.015 µF | 0.015 µF | 0.015 µF | 0.15 µF | 10000 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 200V | 250V | 300V | 200V | 200V |
| Voltage Rating - DC | 630V | 800V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.630" L x 0.240" W (16.00mm x 6.10mm) | 0.630" L x 0.276" W (16.00mm x 7.00mm) | 0.748" L x 0.311" W (19.00mm x 7.90mm) | 0.827" L x 0.378" W (21.00mm x 9.60mm) | 0.630" L x 0.217" W (16.00mm x 5.50mm) |
| Height - Seated (Max) | 0.457" (11.60mm) | 0.496" (12.60mm) | 0.665" (16.90mm) | 0.685" (17.40mm) | 0.437" (11.10mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.591" (15.00mm) | 0.689" (17.50mm) | 0.492" (12.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
