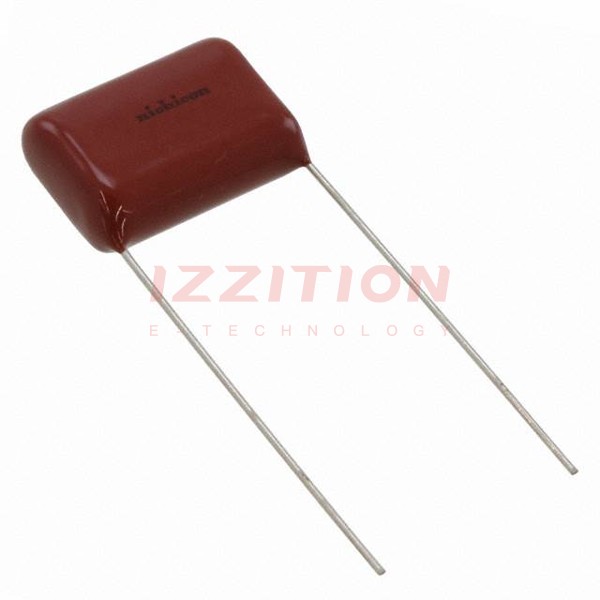

| Part Number | QXP2G224KRPT | QXP2J224KRPT | QXP2K224KRPT | QXP2E224KRPT | QXP2G223KRPT |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.22 µF | 0.22 µF | 0.22 µF | 0.22 µF | 0.022 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 160V | 200V | 250V | 125V | 160V |
| Voltage Rating - DC | 400V | 630V | 800V | 250V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.827" L x 0.362" W (21.00mm x 9.20mm) | 1.043" L x 0.354" W (26.50mm x 9.00mm) | 1.043" L x 0.453" W (26.50mm x 11.50mm) | 0.827" L x 0.291" W (21.00mm x 7.40mm) | 0.630" L x 0.228" W (16.00mm x 5.80mm) |
| Height - Seated (Max) | 0.669" (17.00mm) | 0.740" (18.80mm) | 0.839" (21.30mm) | 0.508" (12.90mm) | 0.429" (10.90mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.689" (17.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.689" (17.50mm) | 0.492" (12.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
