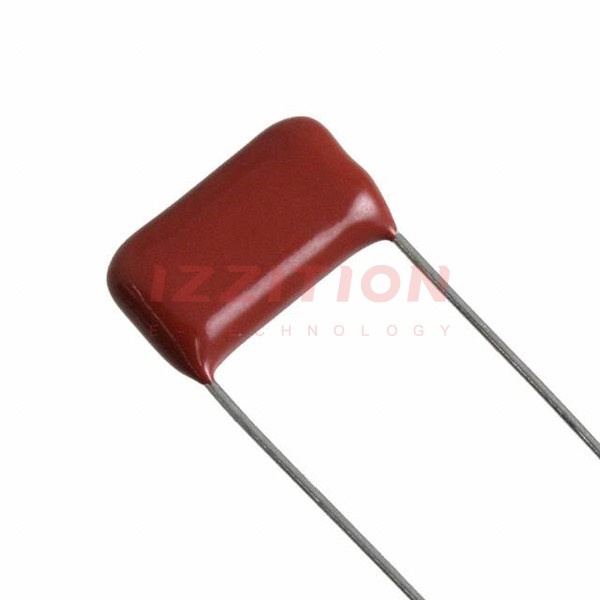

| Part Number | QXP2G223KRPT | QXP2J223KRPT | QXP2G224KRPT | QXP2K223KRPT | QXT2G223KRPT |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.022 µF | 0.022 µF | 0.22 µF | 0.022 µF | 0.022 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 160V | 200V | 160V | 250V | 200V |
| Voltage Rating - DC | 400V | 630V | 400V | 800V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.630" L x 0.228" W (16.00mm x 5.80mm) | 0.630" L x 0.268" W (16.00mm x 6.80mm) | 0.827" L x 0.362" W (21.00mm x 9.20mm) | 0.630" L x 0.315" W (16.00mm x 8.00mm) | 0.748" L x 0.276" W (19.00mm x 7.00mm) |
| Height - Seated (Max) | 0.429" (10.90mm) | 0.484" (12.30mm) | 0.669" (17.00mm) | 0.535" (13.60mm) | 0.630" (16.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.689" (17.50mm) | 0.492" (12.50mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
