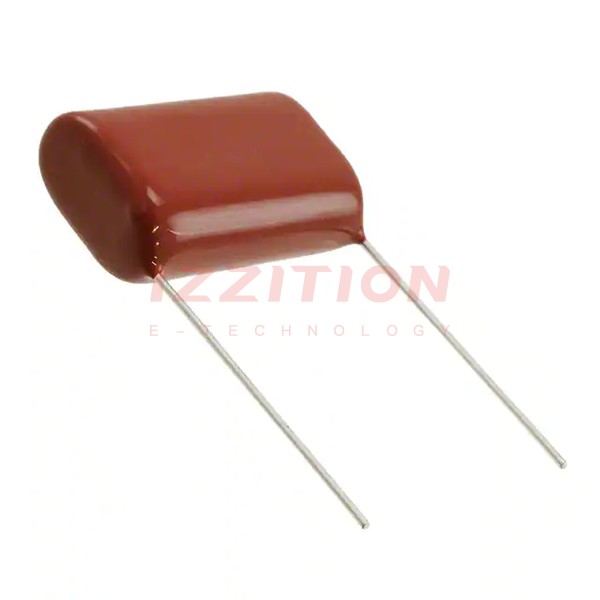

| Part Number | QXP2G105KRPT | QXP2G155KRPT | QXP2E105KRPT | QXP2G104KRPT |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 1 µF | 1.5 µF | 1 µF | 0.1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 160V | 160V | 125V | 160V |
| Voltage Rating - DC | 400V | 400V | 250V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 1.240" L x 0.587" W (31.50mm x 14.90mm) | 1.043" L x 0.390" W (26.50mm x 9.90mm) | 0.827" L x 0.299" W (21.00mm x 7.60mm) |
| Height - Seated (Max) | 0.898" (22.80mm) | 1.039" (26.40mm) | 0.756" (19.20mm) | 0.520" (13.20mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 0.886" (22.50mm) | 0.689" (17.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
