Please send RFQ , we will respond immediately.

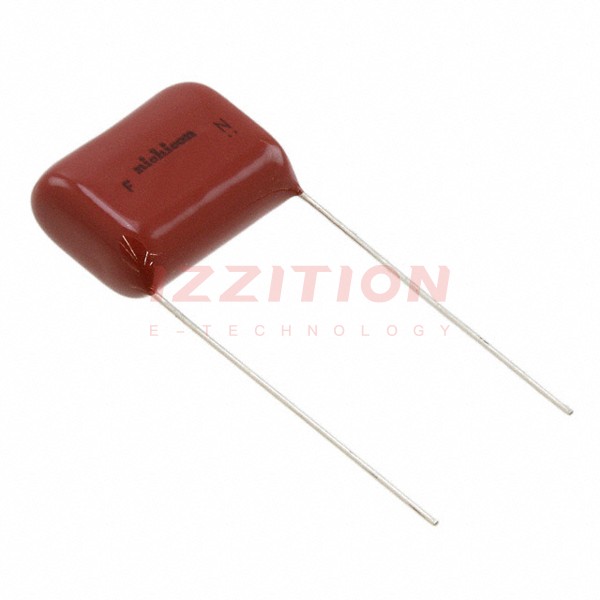

| Part Number | QXP2E684KRPT | QXP2G684KRPT | QXP2J684KRPT | QXP2E683KRPT |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.68 µF | 0.68 µF | 0.68 µF | 0.068 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 125V | 160V | 200V | 125V |
| Voltage Rating - DC | 250V | 400V | 630V | 250V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.827" L x 0.406" W (21.00mm x 10.30mm) | 1.043" L x 0.484" W (26.50mm x 12.30mm) | 1.240" L x 0.520" W (31.50mm x 13.20mm) | 0.630" L x 0.240" W (16.00mm x 6.10mm) |
| Height - Seated (Max) | 0.709" (18.00mm) | 0.870" (22.10mm) | 0.906" (23.00mm) | 0.461" (11.70mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.689" (17.50mm) | 0.886" (22.50mm) | 1.083" (27.50mm) | 0.492" (12.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
