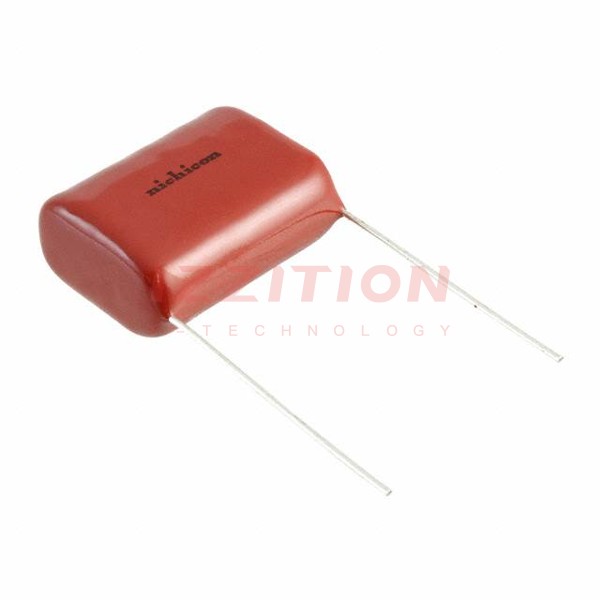

| Part Number | QXP2E335KRPT | QXP2E334KRPT |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 3.3 µF | 0.33 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | 125V | 125V |
| Voltage Rating - DC | 250V | 250V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 0.827" L x 0.335" W (21.00mm x 8.50mm) |
| Height - Seated (Max) | 1.020" (25.90mm) | 0.555" (14.10mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 0.689" (17.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - |
| Features | - | - |
