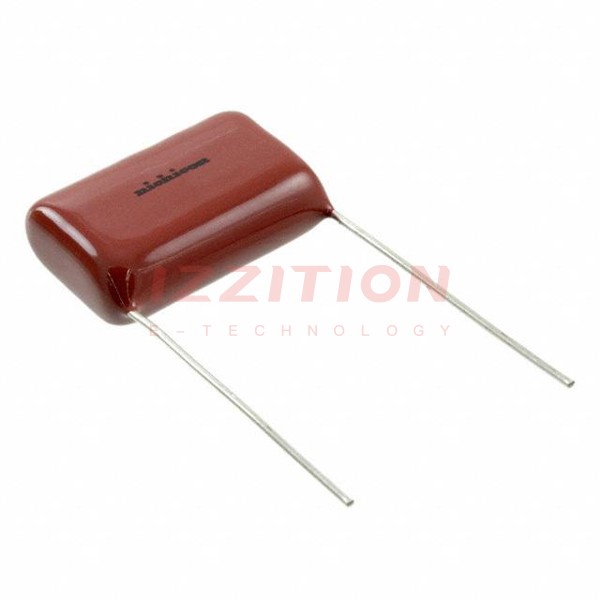

| Part Number | QXP2E105KRPT | QXP2G105KRPT | QXP2E155KRPT | QXP2E104KRPT | QXP2E105JRPT |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 1 µF | 1 µF | 1.5 µF | 0.1 µF | 1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 125V | 160V | 125V | 125V | 125V |
| Voltage Rating - DC | 250V | 400V | 250V | 250V | 250V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.043" L x 0.390" W (26.50mm x 9.90mm) | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 1.043" L x 0.465" W (26.50mm x 11.80mm) | 0.630" L x 0.268" W (16.00mm x 6.80mm) | 1.043" L x 0.390" W (26.50mm x 9.90mm) |
| Height - Seated (Max) | 0.756" (19.20mm) | 0.898" (22.80mm) | 0.854" (21.70mm) | 0.488" (12.40mm) | 0.756" (19.20mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 1.083" (27.50mm) | 0.886" (22.50mm) | 0.492" (12.50mm) | 0.886" (22.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
