Please send RFQ , we will respond immediately.

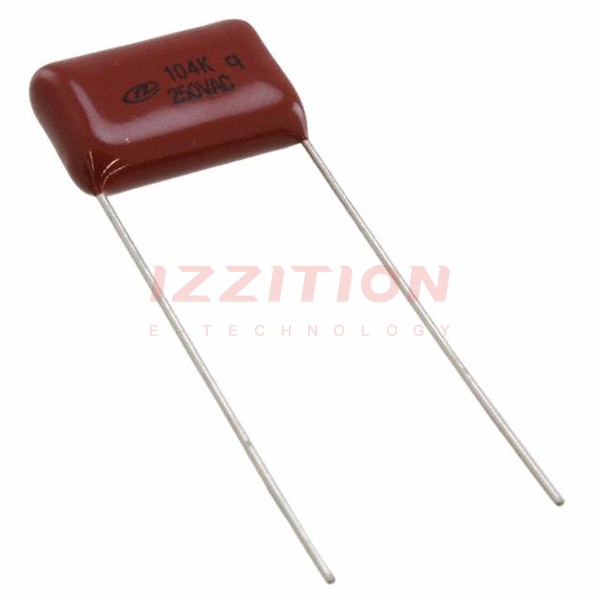

| Part Number | QXL2E104KTPT | QXL2E154KTPT | QXL2B104KTPT | QXL2E103KTPT |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.1 µF | 0.15 µF | 0.1 µF | 10000 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 250V | 250V | 125V | 250V |
| Voltage Rating - DC | - | - | - | - |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.728" L x 0.252" W (18.50mm x 6.40mm) | 0.728" L x 0.280" W (18.50mm x 7.10mm) | 0.433" L x 0.268" W (11.00mm x 6.80mm) | 0.531" L x 0.173" W (13.50mm x 4.40mm) |
| Height - Seated (Max) | 0.598" (15.20mm) | 0.685" (17.40mm) | 0.469" (11.90mm) | 0.433" (11.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.295" (7.50mm) | 0.394" (10.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
