Please send RFQ , we will respond immediately.

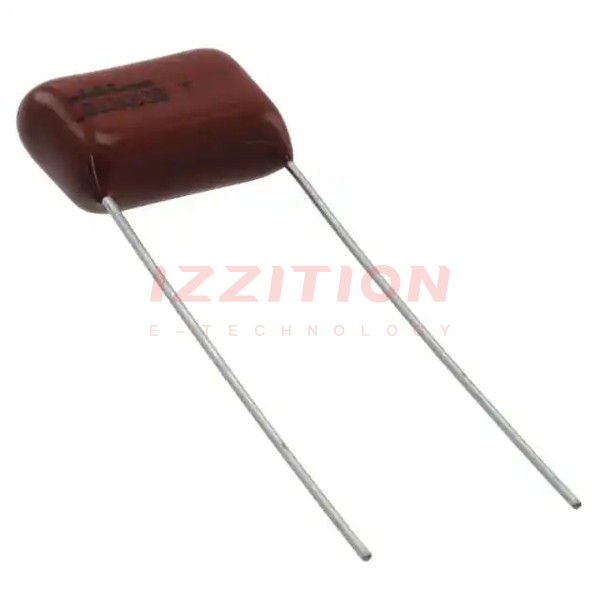

| Part Number | QXK2J333KTPTZH | QXK2J334KTPTZH | QXK2G333KTPTZH |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 0.033 µF | 0.33 µF | 0.033 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 250V | 250V | 200V |
| Voltage Rating - DC | 630V | 630V | 400V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.610" L x 0.280" W (15.50mm x 7.10mm) | 1.024" L x 0.429" W (26.00mm x 10.90mm) | 0.531" L x 0.220" W (13.50mm x 5.60mm) |
| Height - Seated (Max) | 0.524" (13.30mm) | 0.819" (20.80mm) | 0.441" (11.20mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.886" (22.50mm) | 0.413" (10.50mm) |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
