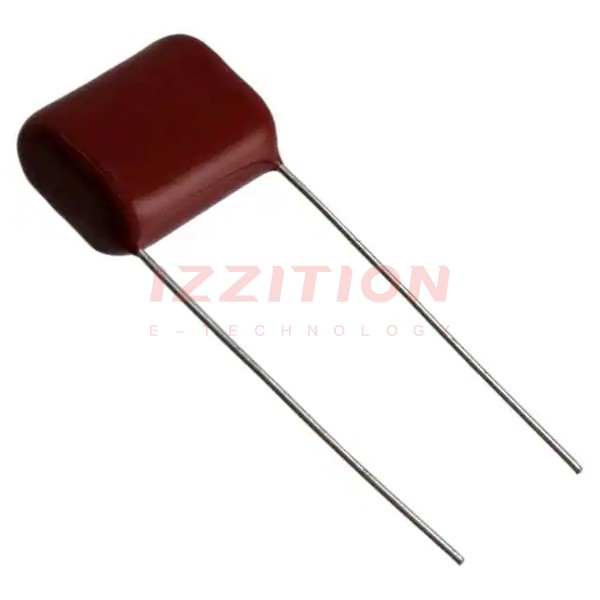

| Part Number | QXK2J224KTP | QXK2J225KTP | QXK2G224KTP | QXK2J223KTP | QXK2J224JTP |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.22 µF | 2.2 µF | 0.22 µF | 0.022 µF | 0.22 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 250V | 250V | 200V | 250V | 250V |
| Voltage Rating - DC | 630V | 630V | 400V | 630V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.728" L x 0.378" W (18.50mm x 9.60mm) | 1.201" L x 0.728" W (30.50mm x 18.50mm) | 0.728" L x 0.232" W (18.50mm x 5.90mm) | 0.531" L x 0.201" W (13.50mm x 5.10mm) | 0.728" L x 0.378" W (18.50mm x 9.60mm) |
| Height - Seated (Max) | 0.642" (16.30mm) | 1.142" (29.00mm) | 0.559" (14.20mm) | 0.465" (11.80mm) | 0.642" (16.30mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 1.083" (27.50mm) | 0.591" (15.00mm) | 0.394" (10.00mm) | 0.591" (15.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
