Please send RFQ , we will respond immediately.

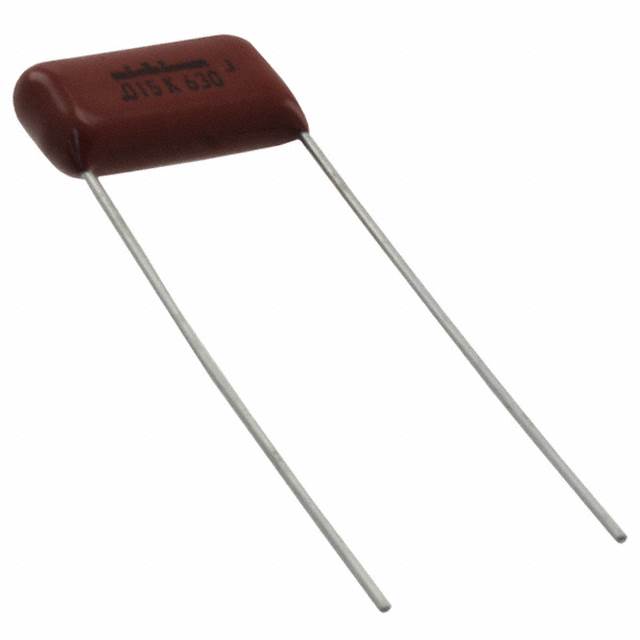

| Part Number | QXK2J153KTPTZH | QXK2J154KTPTZH | QXK2J103KTPTZH |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 0.015 µF | 0.15 µF | 10000 pF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 250V | 250V | 250V |
| Voltage Rating - DC | 630V | 630V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.610" L x 0.217" W (15.50mm x 5.50mm) | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.610" L x 0.189" W (15.50mm x 4.80mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.642" (16.30mm) | 0.409" (10.40mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.886" (22.50mm) | 0.492" (12.50mm) |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
