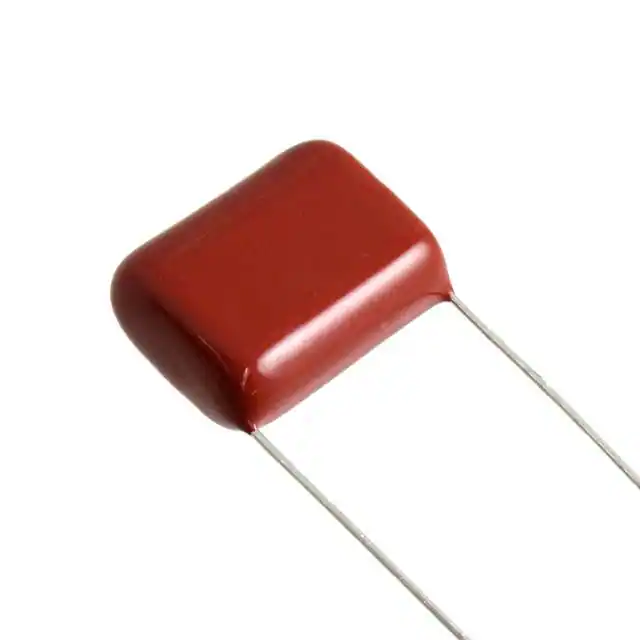

| Part Number | QXK2J105KTP7FX | QXK2J155KTP7FX | QXK2J105JTP7FX |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 1 µF | 1.5 µF | 1 µF |
| Tolerance | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 250V | 250V | 250V |
| Voltage Rating - DC | 630V | 630V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 1.201" L x 0.472" W (30.50mm x 12.00mm) | 1.201" L x 0.583" W (30.50mm x 14.80mm) | 1.201" L x 0.472" W (30.50mm x 12.00mm) |
| Height - Seated (Max) | 1.024" (26.00mm) | 1.134" (28.80mm) | 1.024" (26.00mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
