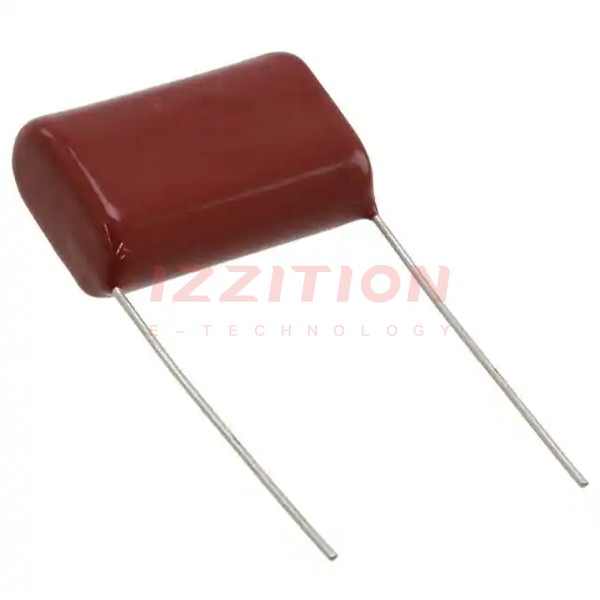

| Part Number | QXK2J105KTP | QXK2J155KTP | QXK2G105KTP | QXK2J103KTP | QXK2J104KTP | QXK2J105JTP |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 1 µF | 1.5 µF | 1 µF | 10000 pF | 0.1 µF | 1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 250V | 250V | 200V | 250V | 250V | 250V |
| Voltage Rating - DC | 630V | 630V | 400V | 630V | 630V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.201" L x 0.472" W (30.50mm x 12.00mm) | 1.201" L x 0.583" W (30.50mm x 14.80mm) | 1.004" L x 0.343" W (25.50mm x 8.70mm) | 0.531" L x 0.173" W (13.50mm x 4.40mm) | 0.728" L x 0.252" W (18.50mm x 6.40mm) | 1.201" L x 0.472" W (30.50mm x 12.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) | 0.976" (24.80mm) | 0.732" (18.60mm) | 0.413" (10.50mm) | 0.579" (14.70mm) | 0.866" (22.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.083" (27.50mm) | 0.886" (22.50mm) | 0.394" (10.00mm) | 0.591" (15.00mm) | 1.083" (27.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
