Please send RFQ , we will respond immediately.

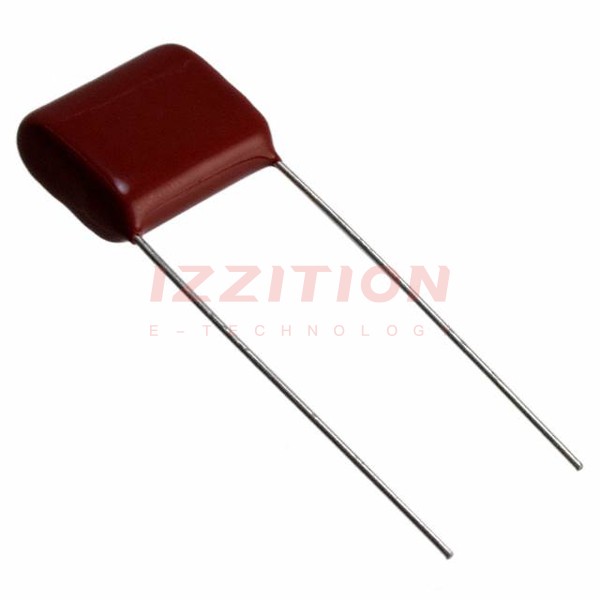

| Part Number | QXK2G474KTP | QXK2J474KTP | QXK2E474KTP | QXK2G473KTP | QXK2G474JTP |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.47 µF | 0.47 µF | 0.47 µF | 0.047 µF | 0.47 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | 200V | 250V | 125V | 200V | 200V |
| Voltage Rating - DC | 400V | 630V | 250V | 400V | 400V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.728" L x 0.327" W (18.50mm x 8.30mm) | 1.004" L x 0.370" W (25.50mm x 9.40mm) | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.531" L x 0.185" W (13.50mm x 4.70mm) | 0.728" L x 0.327" W (18.50mm x 8.30mm) |
| Height - Seated (Max) | 0.654" (16.60mm) | 0.756" (19.20mm) | 0.543" (13.80mm) | 0.425" (10.80mm) | 0.654" (16.60mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.886" (22.50mm) | 0.591" (15.00mm) | 0.394" (10.00mm) | 0.591" (15.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
