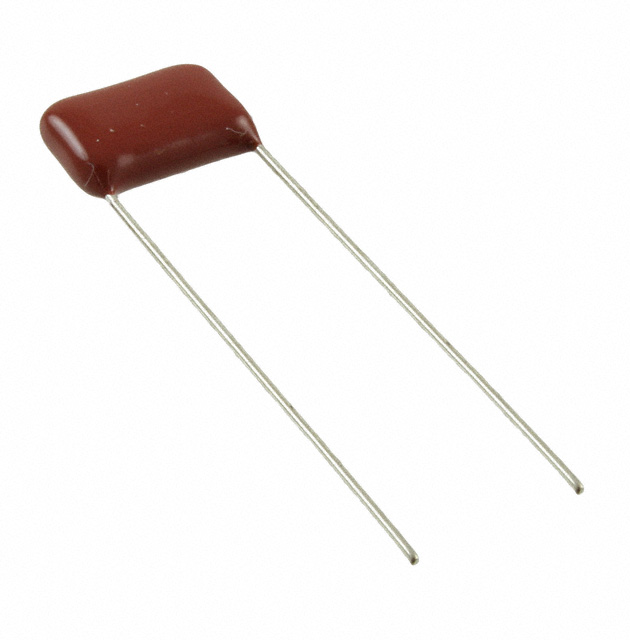

| Part Number | QXK2G223KTPTZH | QXK2J223KTPTZH | QXK2G224KTPTZH |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 0.022 µF | 0.022 µF | 0.22 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 200V | 250V | 200V |
| Voltage Rating - DC | 400V | 630V | 400V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.531" L x 0.193" W (13.50mm x 4.90mm) | 0.610" L x 0.248" W (15.50mm x 6.30mm) | 0.807" L x 0.303" W (20.50mm x 7.70mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.465" (11.80mm) | 0.547" (13.90mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.413" (10.50mm) | 0.492" (12.50mm) | 0.689" (17.50mm) |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
