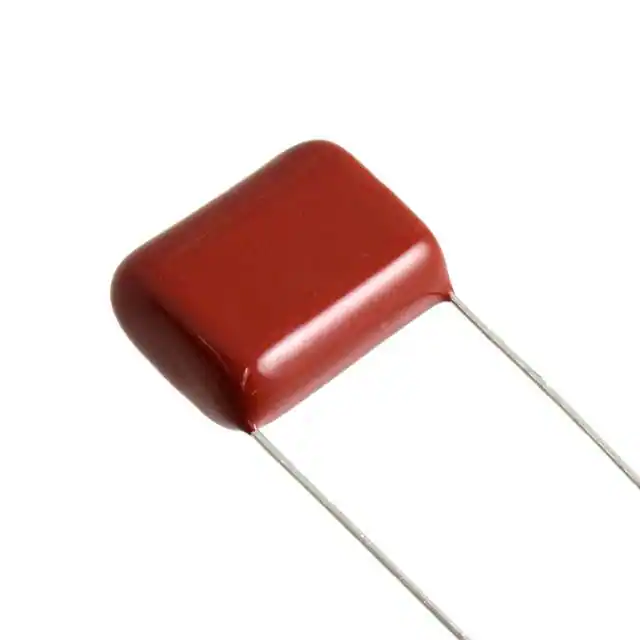

| Part Number | QXK2E225JTP | QXK2E225KTP | QXK2G225JTP | QXK2E224JTP |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 2.2 µF | 2.2 µF | 2.2 µF | 0.22 µF |
| Tolerance | ±5% | ±10% | ±5% | ±5% |
| Voltage Rating - AC | 125V | 125V | 200V | 125V |
| Voltage Rating - DC | 250V | 250V | 400V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.004" L x 0.319" W (25.50mm x 8.10mm) | 1.004" L x 0.319" W (25.50mm x 8.10mm) | 1.201" L x 0.453" W (30.50mm x 11.50mm) | 0.531" L x 0.232" W (13.50mm x 5.90mm) |
| Height - Seated (Max) | 0.709" (18.00mm) | 0.709" (18.00mm) | 0.846" (21.50mm) | 0.472" (12.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 1.083" (27.50mm) | 0.394" (10.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
