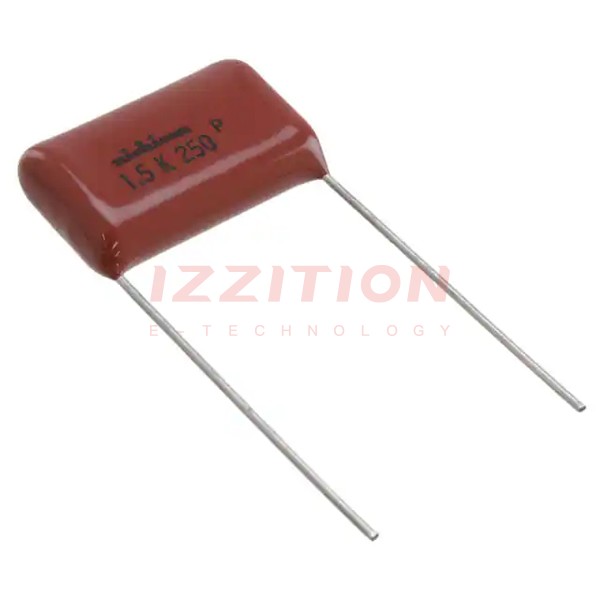

| Part Number | QXK2E155KTPTZH | QXK2G155KTPTZH | QXK2E105KTPTZH | QXK2E154KTPTZH |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 1.5 µF | 1.5 µF | 1 µF | 0.15 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 125V | 200V | 125V | 125V |
| Voltage Rating - DC | 250V | 400V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.024" L x 0.327" W (26.00mm x 8.30mm) | 1.220" L x 0.484" W (31.00mm x 12.30mm) | 0.807" L x 0.339" W (20.50mm x 8.60mm) | 0.610" L x 0.217" W (15.50mm x 5.50mm) |
| Height - Seated (Max) | 0.713" (18.10mm) | 0.870" (22.10mm) | 0.642" (16.30mm) | 0.437" (11.10mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 1.083" (27.50mm) | 0.689" (17.50mm) | 0.492" (12.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
