Nichicon-QXK2E154KTP7ZHFL - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.15 µF
Tolerance:	±10%
Voltage Rating - AC:	125V
Voltage Rating - DC:	250V
Dielectric Material:	Polyester, Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-40°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.610" L x 0.217" W (15.50mm x 5.50mm)
Height - Seated (Max):	0.398" (10.10mm)
Termination:	PC Pins
Lead Spacing:	0.492" (12.50mm)
Applications:	General Purpose
Ratings:	-
Features:	-

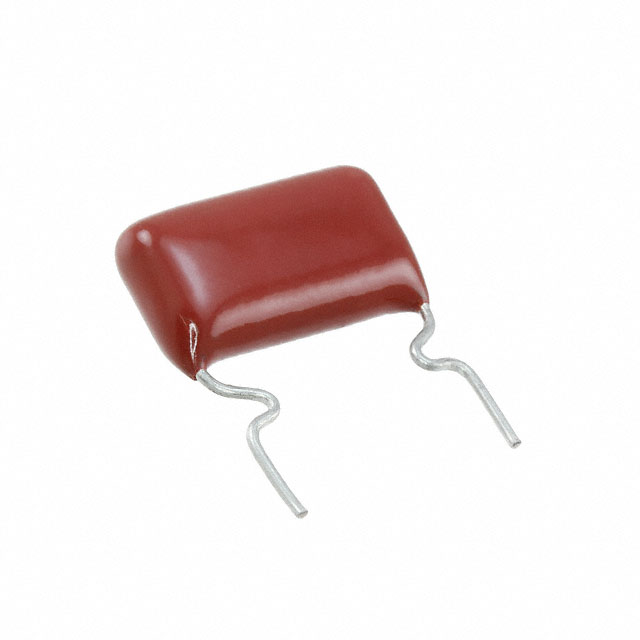

Nichicon QXK2E154KTP7ZHFL
