Please send RFQ , we will respond immediately.

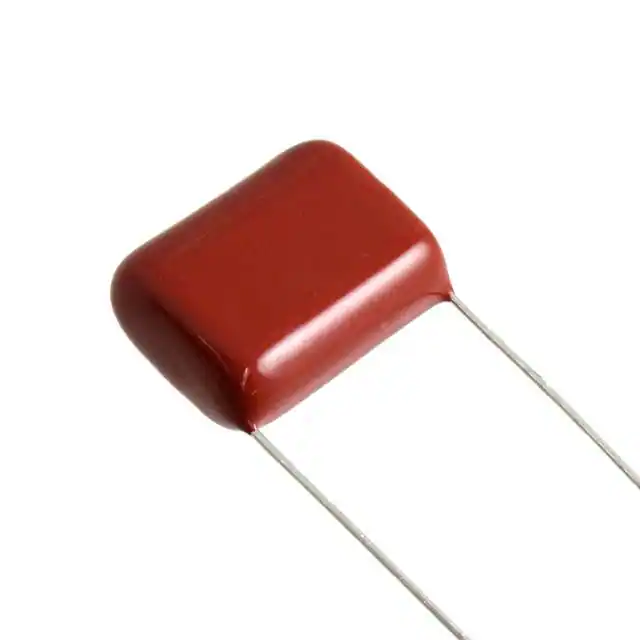

| Part Number | QXK2E154KTP7FG | QXK2E104KTP7FG | QXK2E153KTP7FG |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 0.15 µF | 0.1 µF | 0.015 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 125V | 125V | 125V |
| Voltage Rating - DC | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.433" L x 0.240" W (11.00mm x 6.10mm) | 0.433" L x 0.205" W (11.00mm x 5.20mm) | 0.433" L x 0.197" W (11.00mm x 5.00mm) |
| Height - Seated (Max) | 0.602" (15.30mm) | 0.567" (14.40mm) | - |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
