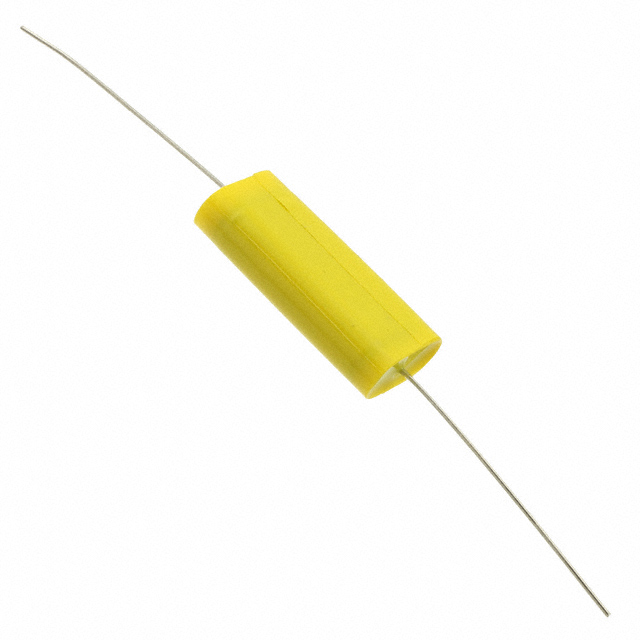

| Part Number | QAP2J474KRP | QAP2E474KRP | QAP2G474KRP |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 0.47 µF | 0.47 µF | 0.47 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - |
| Voltage Rating - DC | 630V | 250V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial |
| Size / Dimension | 0.685" W, 0.366" T x 1.378" L (17.40mm, 9.30mm x 35.00mm) | 0.488" W, 0.228" T x 1.181" L (12.40mm, 5.80mm x 30.00mm) | 0.618" W, 0.362" T x 1.181" L (15.70mm, 9.20mm x 30.00mm) |
| Height - Seated (Max) | - | - | - |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | - | - | - |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - |
| Features | - | - | - |
