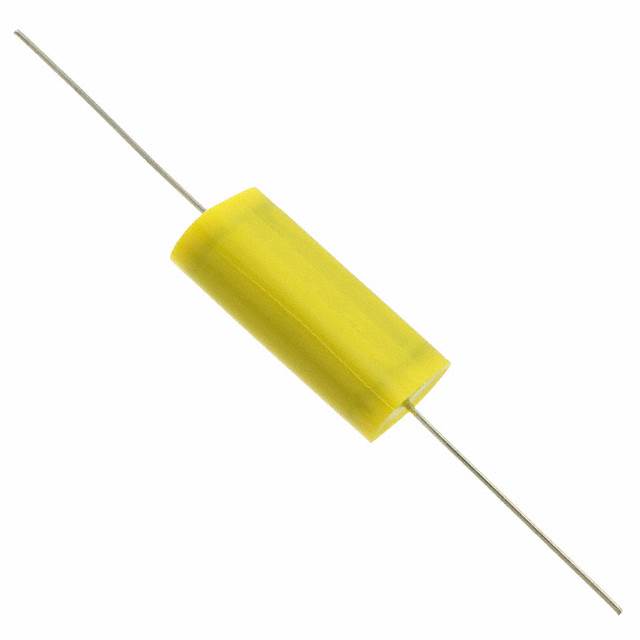

| Part Number | QAP2J105KRP | QAP2J155KRP | QAP2E105KRP | QAP2G105KRP | QAP2J105JRP |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 1 µF | 1.5 µF | 1 µF | 1 µF | 1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | - | - | - | - | - |
| Voltage Rating - DC | 630V | 630V | 250V | 400V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.850" W, 0.469" T x 1.575" L (21.60mm, 11.90mm x 40.00mm) | 0.913" W, 0.531" T x 1.811" L (23.20mm, 13.50mm x 46.00mm) | 0.638" W, 0.315" T x 1.181" L (16.20mm, 8.00mm x 30.00mm) | 1.004" W, 0.622" T x 1.811" L (25.50mm, 15.80mm x 46.00mm) | 0.850" W, 0.469" T x 1.575" L (21.60mm, 11.90mm x 40.00mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | - | - | - | - | - |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
