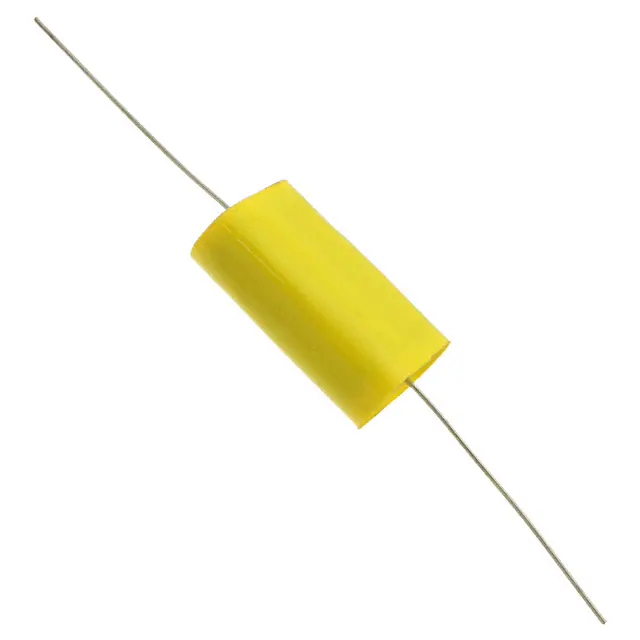

| Part Number | QAP2G155KRP | QAP2J155KRP | QAP2E155KRP | QAP2G105KRP |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 1.5 µF | 1.5 µF | 1.5 µF | 1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - |
| Voltage Rating - DC | 400V | 630V | 250V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.909" W, 0.528" T x 1.378" L (23.10mm, 13.40mm x 35.00mm) | 0.913" W, 0.531" T x 1.811" L (23.20mm, 13.50mm x 46.00mm) | 0.717" W, 0.398" T x 1.181" L (18.20mm, 10.10mm x 30.00mm) | 1.004" W, 0.622" T x 1.811" L (25.50mm, 15.80mm x 46.00mm) |
| Height - Seated (Max) | - | - | - | - |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | - | - | - | - |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
