Please send RFQ , we will respond immediately.

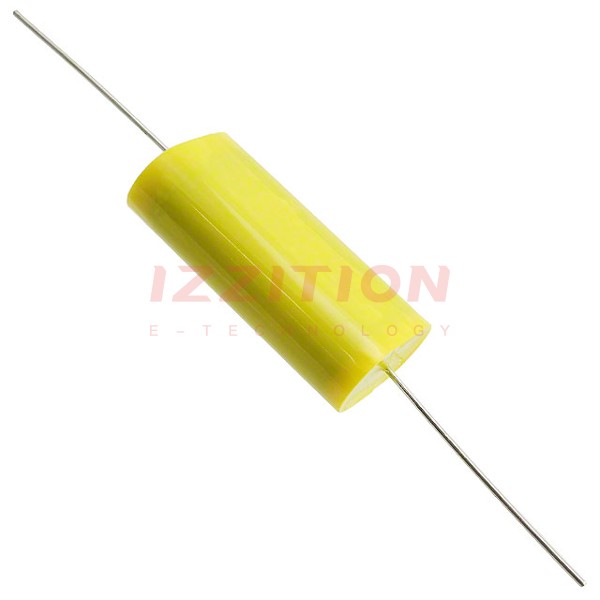

| Part Number | QAK2J155KTP | QAK2E155KTP | QAK2G155KTP | QAK2J105KTP | QAK2J154KTP |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 1.5 µF | 1.5 µF | 1.5 µF | 1 µF | 0.15 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - | - | - |
| Voltage Rating - DC | 630V | 250V | 400V | 630V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.984" W, 0.571" T x 1.732" L (25.00mm, 14.50mm x 44.00mm) | 0.630" W, 0.256" T x 1.102" L (16.00mm, 6.50mm x 28.00mm) | 0.886" W, 0.453" T x 1.102" L (22.50mm, 11.50mm x 28.00mm) | 0.866" W, 0.433" T x 1.732" L (22.00mm, 11.00mm x 44.00mm) | 0.551" W, 0.236" T x 1.102" L (14.00mm, 6.00mm x 28.00mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
