Please send RFQ , we will respond immediately.

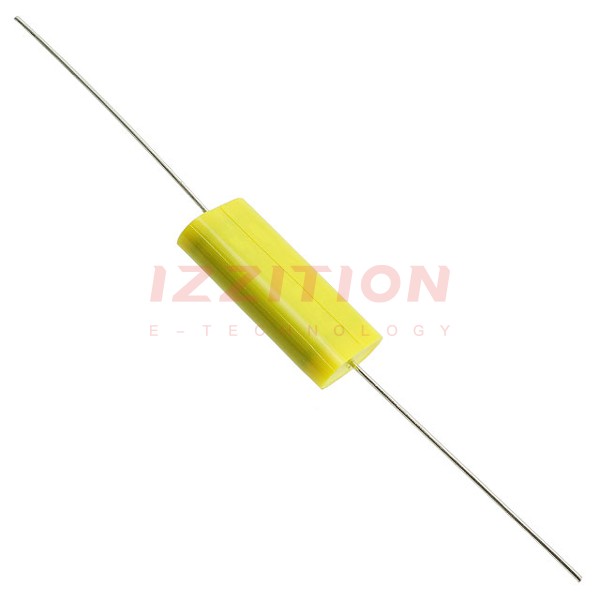

| Part Number | QAK2G684KTP | QAK2J684KTP | QAK2E684KTP |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 0.68 µF | 0.68 µF | 0.68 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - |
| Voltage Rating - DC | 400V | 630V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial |
| Size / Dimension | 0.669" W, 0.295" T x 1.102" L (17.00mm, 7.50mm x 28.00mm) | 0.827" W, 0.394" T x 1.496" L (21.00mm, 10.00mm x 38.00mm) | 0.512" W, 0.217" T x 0.906" L (13.00mm, 5.50mm x 23.00mm) |
| Height - Seated (Max) | - | - | - |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
