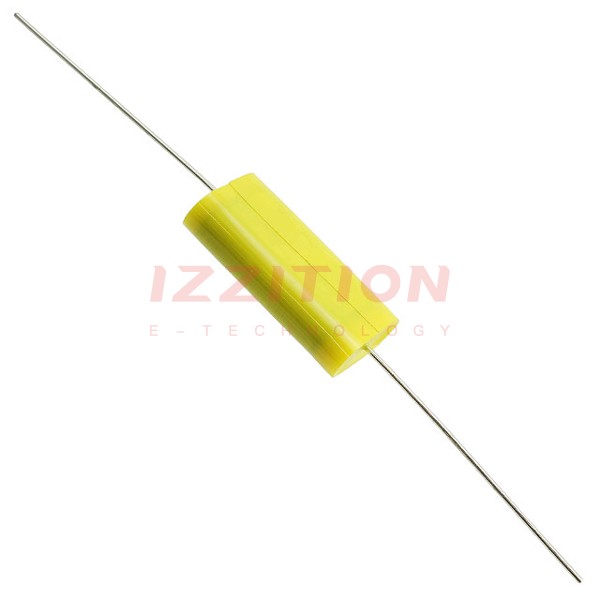

| Part Number | QAK2E225KTP | QXK2E225KTP | QAK2G225KTP | QAK2J225KTP |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 2.2 µF | 2.2 µF | 2.2 µF | 2.2 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | 125V | - | - |
| Voltage Rating - DC | 250V | 250V | 400V | 630V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Radial | Axial | Axial |
| Size / Dimension | 0.689" W, 0.315" T x 1.102" L (17.50mm, 8.00mm x 28.00mm) | 1.004" L x 0.319" W (25.50mm x 8.10mm) | 0.906" W, 0.472" T x 1.299" L (23.00mm, 12.00mm x 33.00mm) | 1.083" W, 0.650" T x 1.969" L (27.50mm, 16.50mm x 50.00mm) |
| Height - Seated (Max) | - | 0.709" (18.00mm) | - | - |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | - | 0.886" (22.50mm) | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
