Please send RFQ , we will respond immediately.

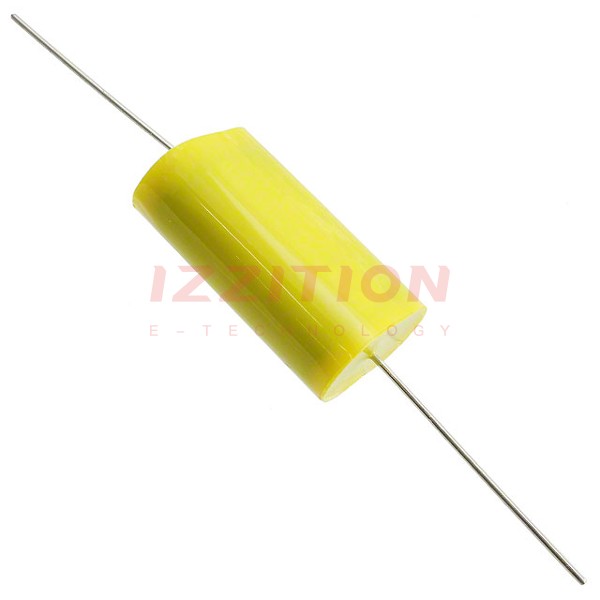

| Part Number | QAK2E106KTP | QXK2E106KTP | QAK2E105KTP |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 10 µF | 10 µF | 1 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | 125V | - |
| Voltage Rating - DC | 250V | 250V | 250V |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Radial | Axial |
| Size / Dimension | 0.886" W, 0.591" T x 1.496" L (22.50mm, 15.00mm x 38.00mm) | 1.201" L x 0.614" W (30.50mm x 15.60mm) | 0.610" W, 0.236" T x 0.906" L (15.50mm, 6.00mm x 23.00mm) |
| Height - Seated (Max) | - | 1.012" (25.70mm) | - |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | - | 1.083" (27.50mm) | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
