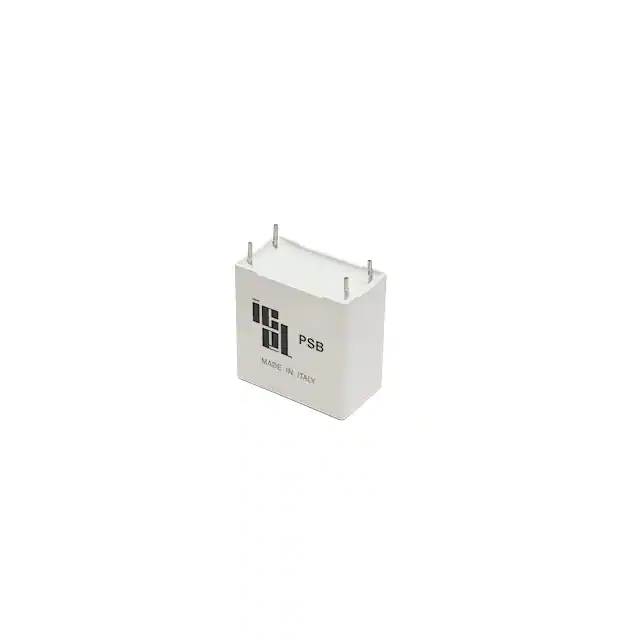

Nichicon-PSB2152220KGS - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.022 µF
Tolerance:	±10%
Voltage Rating - AC:	650V
Voltage Rating - DC:	1500V (1.5kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	30 mOhms
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.043" L x 0.276" W (26.50mm x 7.00mm)
Height - Seated (Max):	0.630" (16.00mm)
Termination:	PC Pins
Lead Spacing:	0.886" (22.50mm)
Applications:	High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings:	-
Features:	-

Nichicon PSB2152220KGS
