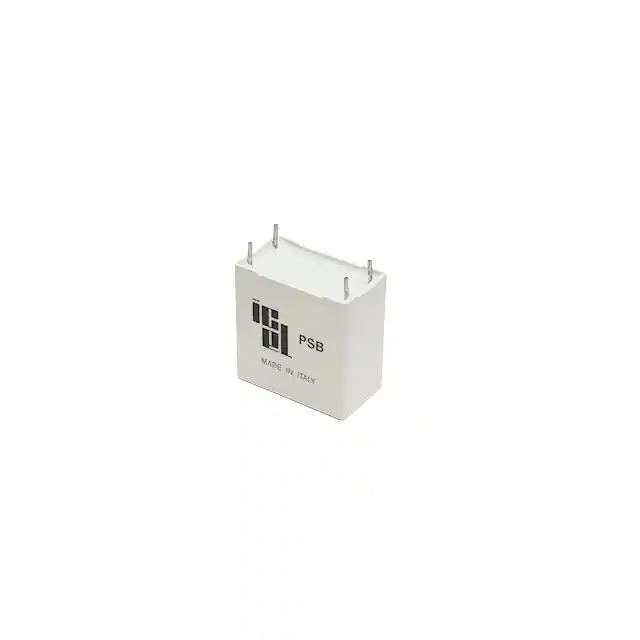

| Part Number | PSB2123470KJL | PSB2153470KJL | PSB2123470KJS | PSB2103470KJL | PSB2123470KHL |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.47 µF | 0.47 µF | 0.47 µF | 0.47 µF | 0.47 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 630V | 650V | 630V | 575V | 630V |
| Voltage Rating - DC | 1200V (1.2kV) | 1500V (1.5kV) | 1200V (1.2kV) | 1000V (1kV) | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4.8 mOhms | 4.5 mOhms | 4.8 mOhms | 4.7 mOhms | 3.4 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.673" L x 0.866" W (42.50mm x 22.00mm) | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.673" L x 1.181" W (42.50mm x 30.00mm) | 1.260" L x 0.591" W (32.00mm x 15.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) | 1.319" (33.50mm) | 1.457" (37.00mm) | 1.772" (45.00mm) | 0.965" (24.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.476" (37.50mm) | 1.083" (27.50mm) | 1.476" (37.50mm) | 1.083" (27.50mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
