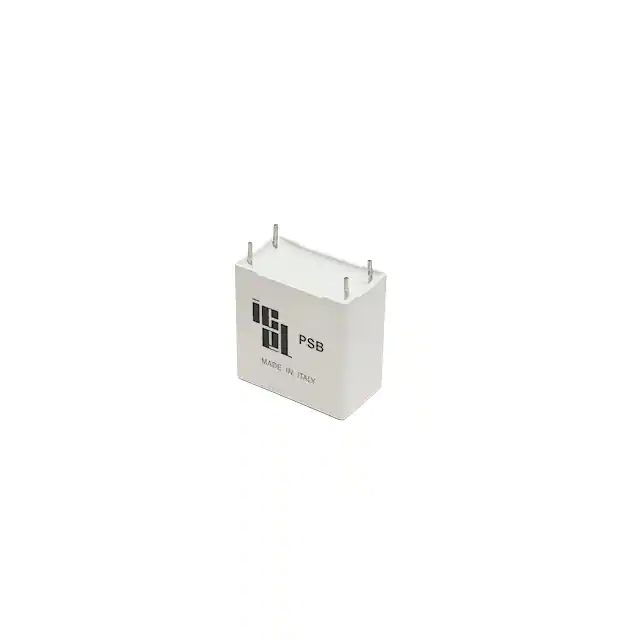

| Part Number | PSB1704100KJS | PSB1704400KJS | PSB1704300KJS | PSB1704120KJS | PSB1704100KHS | PSB1704100KJL |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 1 µF | 4 µF | 3 µF | 1.2 µF | 1 µF | 1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 420V | 420V | 420V | 420V | 420V | 420V |
| Voltage Rating - DC | 700V | 700V | 700V | 700V | 700V | 700V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4 mOhms | 2.4 mOhms | 2.7 mOhms | 3.8 mOhms | 3.2 mOhms | 4 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.673" L x 1.181" W (42.50mm x 30.00mm) | 1.654" L x 0.669" W (42.00mm x 17.00mm) | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.260" L x 0.866" W (32.00mm x 22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) | 1.969" (50.00mm) | 1.772" (45.00mm) | 1.260" (32.00mm) | 1.457" (37.00mm) | 1.457" (37.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.083" (27.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.476" (37.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
