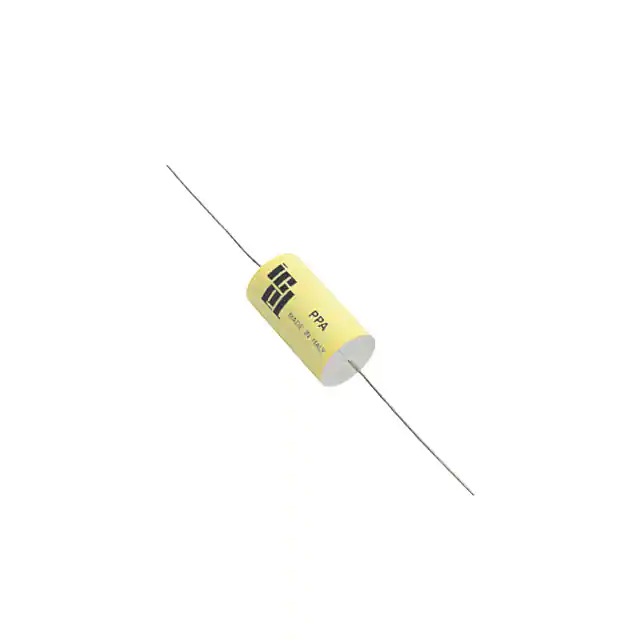

| Part Number | PPA2104220KS | PPA2124220KS | PPA2104200KS | PPA2104220KR |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 2.2 µF | 2.2 µF | 2 µF | 2.2 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 525V | 550V | 525V | 525V |
| Voltage Rating - DC | 1000V (1kV) | 1200V (1.2kV) | 1000V (1kV) | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 3 mOhms | 2.8 mOhms | 3.2 mOhms | 2.7 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial |
| Size / Dimension | 1.299" Dia x 2.087" L (33.00mm x 53.00mm) | 1.457" Dia x 2.087" L (37.00mm x 53.00mm) | 1.240" Dia x 2.087" L (31.50mm x 53.00mm) | 1.299" Dia x 2.087" L (33.00mm x 53.00mm) |
| Height - Seated (Max) | - | - | - | - |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | - | - | - | - |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
