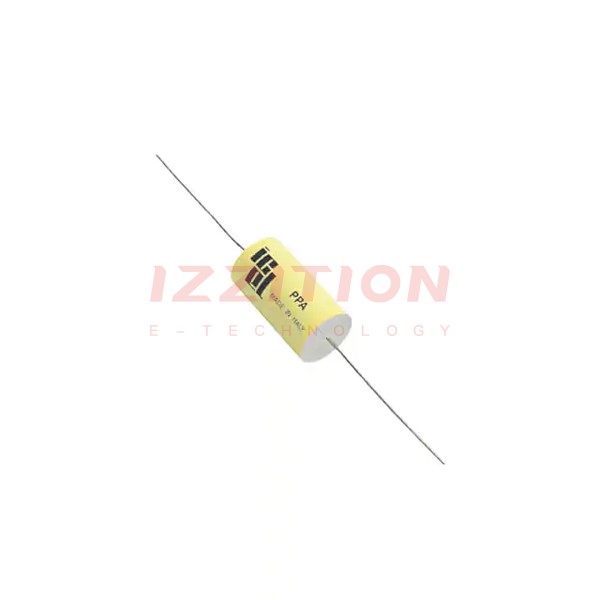

| Part Number | PPA2104100KN | PPA2124100KN | PPA2104150KN | PPA2154100KN |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 1 µF | 1 µF | 1.5 µF | 1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 525V | 550V | 525V | 600V |
| Voltage Rating - DC | 1000V (1kV) | 1200V (1.2kV) | 1000V (1kV) | 1500V (1.5kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 3.2 mOhms | 3.4 mOhms | 2.6 mOhms | 3.2 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial |
| Size / Dimension | 1.024" Dia x 1.732" L (26.00mm x 44.00mm) | 0.886" Dia x 1.732" L (22.50mm x 44.00mm) | 1.240" Dia x 1.732" L (31.50mm x 44.00mm) | 1.378" Dia x 1.732" L (35.00mm x 44.00mm) |
| Height - Seated (Max) | - | - | - | - |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | - | - | - | - |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
