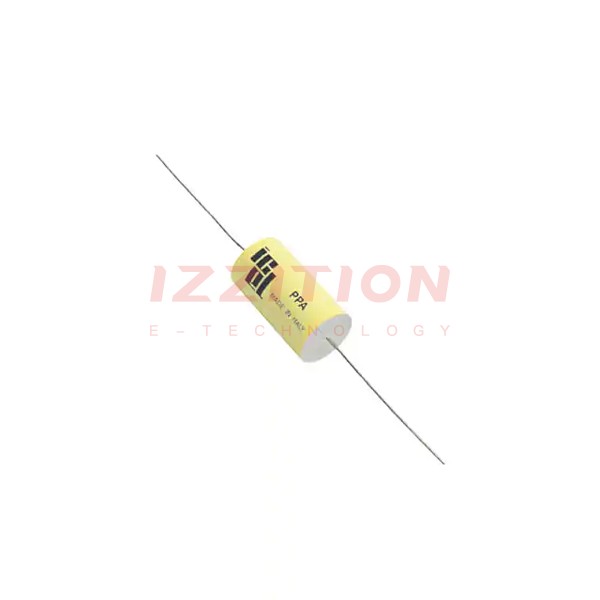

| Part Number | PPA2103330KJ | PPA2103330KN |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 0.33 µF | 0.33 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | 525V | 525V |
| Voltage Rating - DC | 1000V (1kV) | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4.5 mOhms | 5.9 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Axial | Axial |
| Size / Dimension | 0.728" Dia x 1.260" L (18.50mm x 32.00mm) | 0.728" Dia x 1.260" L (18.50mm x 32.00mm) |
| Height - Seated (Max) | - | - |
| Termination | PC Pins | PC Pins |
| Lead Spacing | - | - |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Ratings | - | - |
| Features | - | - |
