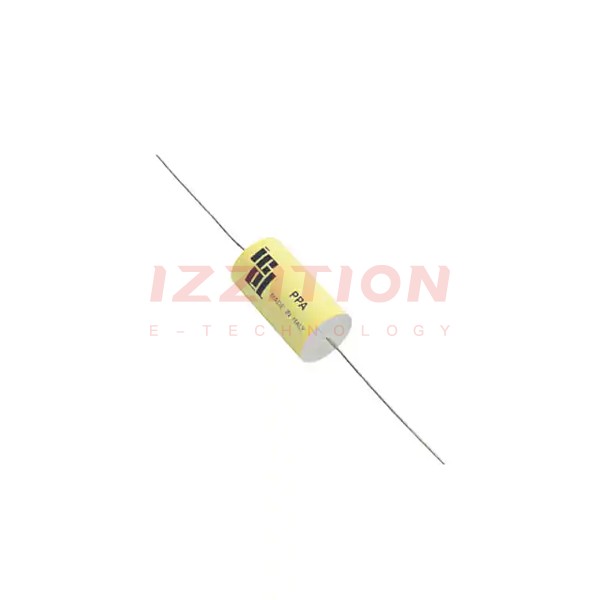

| Part Number | PPA1703100KG | PPA1703150KG |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 0.1 µF | 0.15 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | 420V | 420V |
| Voltage Rating - DC | 700V | 700V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 13 mOhms | 9.4 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Axial | Axial |
| Size / Dimension | 0.394" Dia x 1.063" L (10.00mm x 27.00mm) | 0.453" Dia x 1.063" L (11.50mm x 27.00mm) |
| Height - Seated (Max) | - | - |
| Termination | PC Pins | PC Pins |
| Lead Spacing | - | - |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Ratings | - | - |
| Features | - | - |
