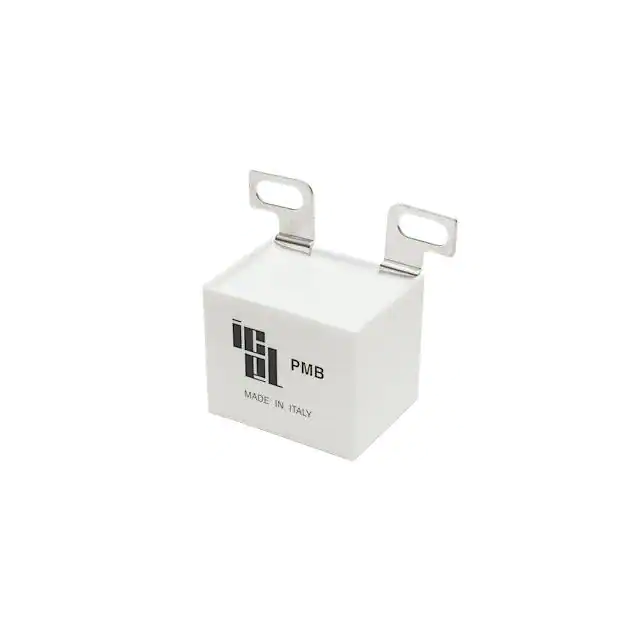

| Part Number | PMB2203560KVR | PMB2203560KSR | PMB2203560KVP |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 0.56 µF | 0.56 µF | 0.56 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | 700V | 700V | 700V |
| Voltage Rating - DC | 2000V (2kV) | 2000V (2kV) | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 3 mOhms | 3 mOhms | 3 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | Rectangular Box | Rectangular Box | Rectangular Box |
| Size / Dimension | 1.673" L x 1.299" W (42.50mm x 33.00mm) | 1.673" L x 1.299" W (42.50mm x 33.00mm) | 1.673" L x 1.299" W (42.50mm x 33.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) | 1.772" (45.00mm) | 1.772" (45.00mm) |
| Termination | Screw Terminals | Screw Terminals | Screw Terminals |
| Lead Spacing | - | - | - |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber | High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Ratings | - | - | - |
| Features | - | - | - |
