Please send RFQ , we will respond immediately.

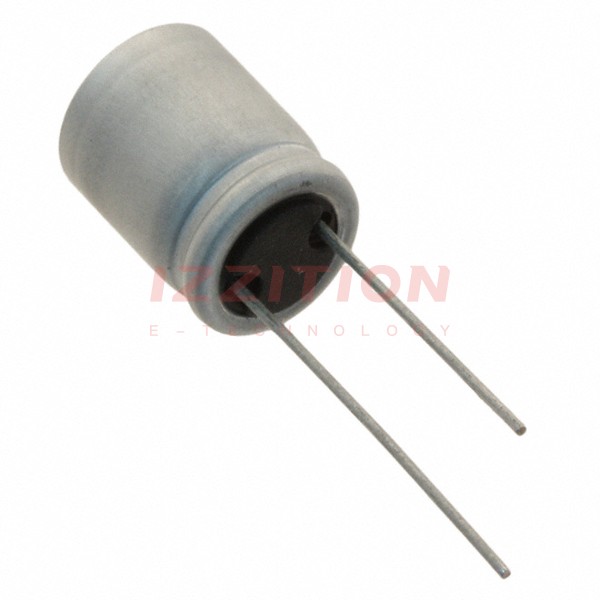

| Part Number | PLX1H470MDL1 | PLV1H470MDL1 | PLX1H270MDL1 |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Obsolete | Active |
| Type | Polymer | Polymer | Polymer |
| Capacitance | 47 µF | 47 µF | 27 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | 29mOhm | 31mOhm | 33mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 125°C | 3000 Hrs @ 105°C | 3000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 125°C |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Features | - | - | - |
| Ripple Current @ Low Frequency | - | - | - |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz | 2.5 A @ 100 kHz | 2 A @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.472" (12.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
