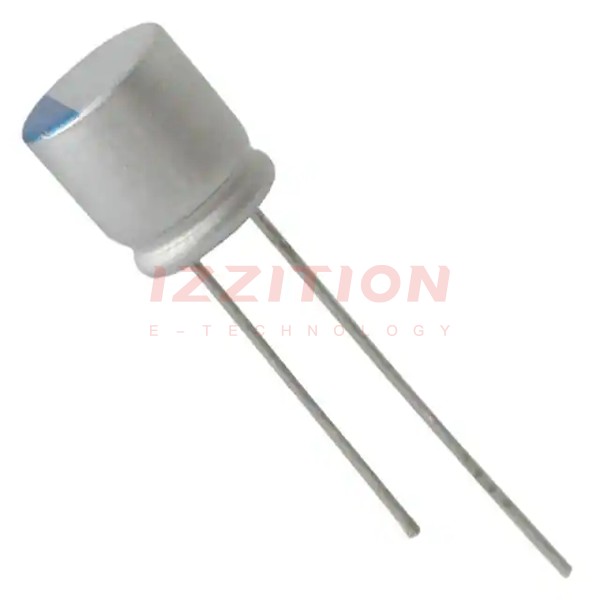

Nichicon PLV1H180MCL1

Manufacturer No:
PLV1H180MCL1
Manufacturer:
Nichicon
Package:
Bulk
Datasheet:
PLV1H180MCL1 Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 18UF 20% 50V T/H
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:18 µF
Tolerance:±20%
Voltage - Rated:50 V
ESR (Equivalent Series Resistance):48mOhm
Lifetime @ Temp.:3000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:-
Ripple Current @ High Frequency:1.5 A @ 100 kHz
Impedance:-
Lead Spacing:0.138" (3.50mm)
Size / Dimension:0.315" Dia (8.00mm)
Height - Seated (Max):0.354" (9.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

-
370

Please send RFQ , we will respond immediately.
