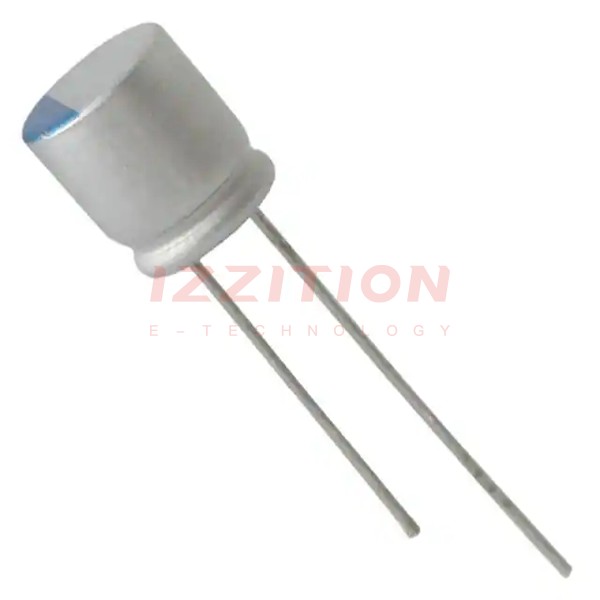

| Part Number | PLV1E121MCL1 | PLV1E121MDL1 |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Not For New Designs | Obsolete |
| Type | Polymer | Polymer |
| Capacitance | 120 µF | 120 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V |
| ESR (Equivalent Series Resistance) | 28mOhm | 25mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Features | - | - |
| Ripple Current @ Low Frequency | - | - |
| Ripple Current @ High Frequency | - | 2.8 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | 0.138" (3.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) | 0.512" (13.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
