PLS1A151MDL4TD
  • Share:

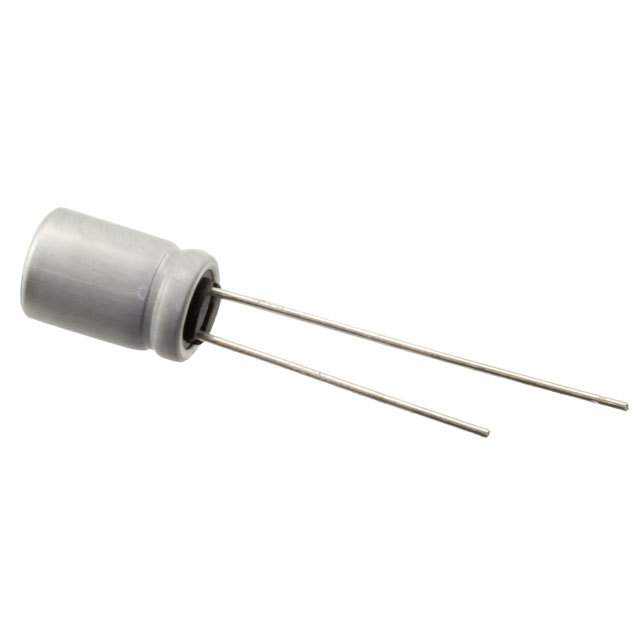

Nichicon PLS1A151MDL4TD

Manufacturer No:
PLS1A151MDL4TD
Manufacturer:
Nichicon
Package:
Cut Tape (CT)
Datasheet:
PLS1A151MDL4TD Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 150UF 20% 10V T/H
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:150 µF
Tolerance:±20%
Voltage - Rated:10 V
ESR (Equivalent Series Resistance):20mOhm
Lifetime @ Temp.:5000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:-
Ripple Current @ High Frequency:3 A @ 100 kHz
Impedance:-
Lead Spacing:0.098" (2.50mm)
Size / Dimension:0.248" Dia (6.30mm)
Height - Seated (Max):0.413" (10.50mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

$1.36
321

Please send RFQ , we will respond immediately.
