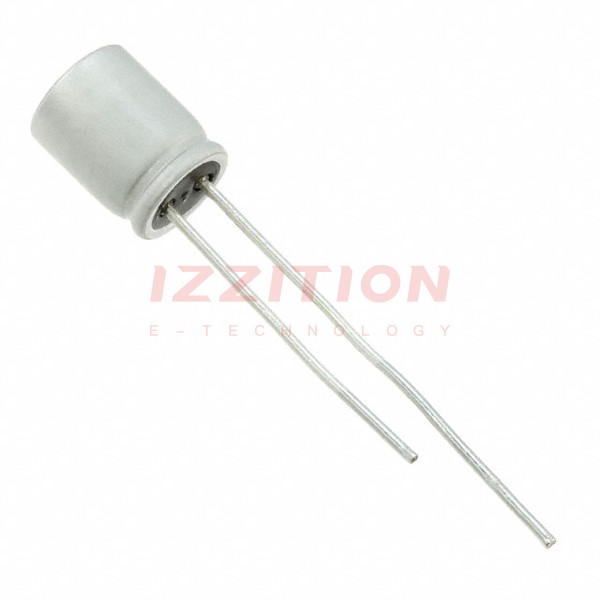

| Part Number | PLS0J561MCO8 | PLS0J561MCO6 |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Type | Polymer | Polymer |
| Capacitance | 560 µF | 560 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | 9mOhm | 8mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Features | - | - |
| Ripple Current @ Low Frequency | - | - |
| Ripple Current @ High Frequency | 4.3 A @ 100 kHz | 5 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | 0.098" (2.50mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) | 0.354" (9.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
