PLF1E220MCL7TD
  • Share:

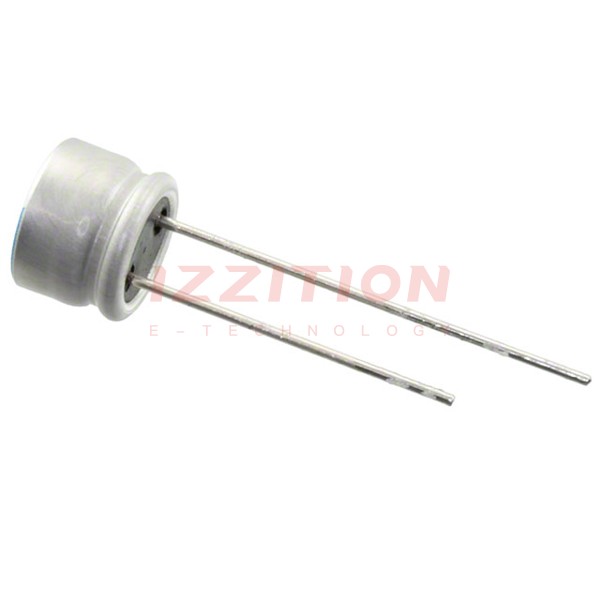

Nichicon PLF1E220MCL7TD

Manufacturer No:
PLF1E220MCL7TD
Manufacturer:
Nichicon
Package:
Cut Tape (CT)
Datasheet:
PLF1E220MCL7TD Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 22UF 20% 25V T/H
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:22 µF
Tolerance:±20%
Voltage - Rated:25 V
ESR (Equivalent Series Resistance):50mOhm
Lifetime @ Temp.:2000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:-
Ripple Current @ High Frequency:1.8 A @ 100 kHz
Impedance:-
Lead Spacing:0.138" (3.50mm)
Size / Dimension:0.315" Dia (8.00mm)
Height - Seated (Max):0.276" (7.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

$1.40
225

Please send RFQ , we will respond immediately.
