Please send RFQ , we will respond immediately.

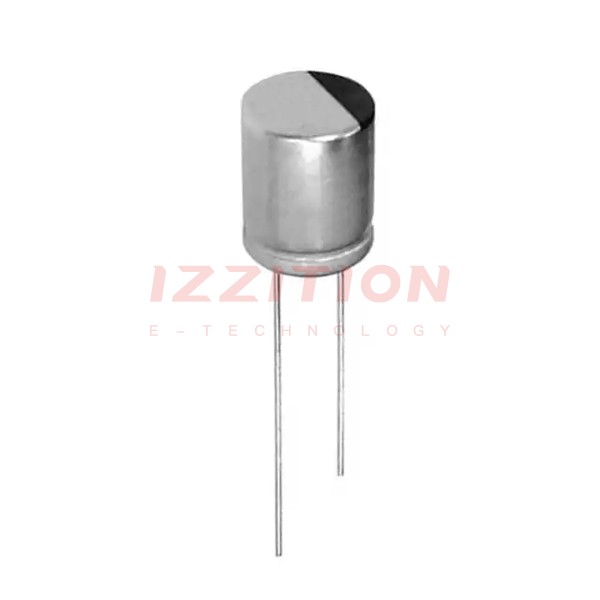

| Part Number | PLF1A471MDO1 | PLF1C471MDO1 | PLF1A271MDO1 |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Type | Polymer | Polymer | Polymer |
| Capacitance | 470 µF | 470 µF | 270 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 16 V | 10 V |
| ESR (Equivalent Series Resistance) | 7mOhm | 9mOhm | 8mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Features | - | - | - |
| Ripple Current @ Low Frequency | - | - | - |
| Ripple Current @ High Frequency | 5.7 A @ 100 kHz | 6.1 A @ 100 kHz | 4.9 A @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.472" (12.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
